Controller Series
Product Feature
- A variety of input connectors
- 1x DP 1.2
- 1x HDMI 2.0
- 2x DL-DVI
- Low latency
- High bit-depth inputs: 8bit/10bit/12bit
- HDR function ( HDR10 and HLG are supported. )
- Ultra-high resolution input
- RGB limited to RGB full

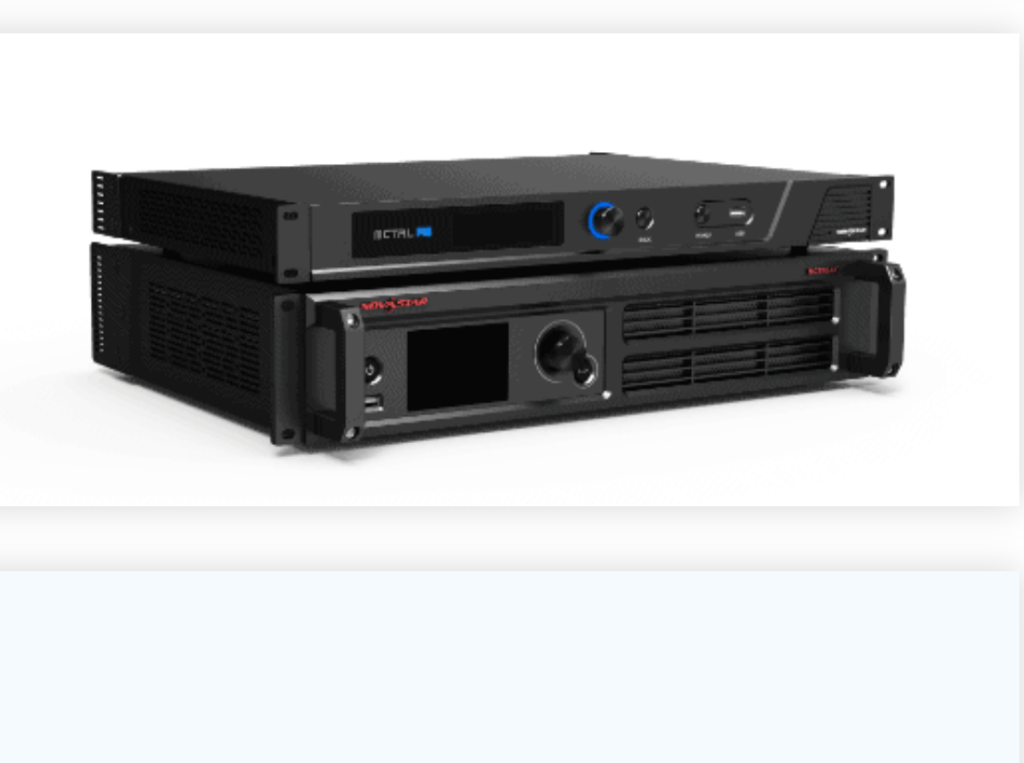

Controller
Various I/O Sub-card Group Plug-in card design, customized configuration Multi-Input Sub-Card One sub-card supports 8K@60Hz input. Maximum support 32 Channels of 4K Parallel Input. Users can replace I/O cards according to their needs, flexible and convenient.
Prism Pro Series
| Module | |||||
Pixel Pitch | P1.2mm | P1.5mm | P1.8mm | P2.5mm | P4mm |
| Material | Mild-steel Serie | Mild-steel Serie | Mild-steel Serie | Mild-steel Serie | Mild-steel Serie |
| Led | SMD1010 | SMD1010 | SMD1010 | SMD2020 | SMD2020 |
| Pixel Density | 409,600dots/m2 | 409,600dots/m2 | 295664 dots/ m2 | 160000 dots/M² | 62500 dots/M² |
| Pixel Configuration | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module | Front service of module | Front service of module | Front service of module | Front service of module |
| Cabinet Dimension & Resolut ion | 640mm x 480mm 533 px x 400px | 640mm x 480mm 416 px x 312px | 640mm x 480mm 344 px x 258px | 640mm x 480mm 256 px x 192px | 640mm x 480mm 160 px x 120px |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Module Resolution | 266 dots x 133 dots | 208 dots x 104 dots | 172*86 dots | 160dots x 80 dots | 80dots x 40 dots |
| Viewing Distance | 1.2 Meter | 1.5 Meter | 1.8 Meter | 2.5 Meter | 4 Meter |
| Brightness | 800 cd/M² | 800 cd/M² | 900 cd/M² | 1000cd/M² | 1000cd/M² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 |
| Brightness uniformity | 99% | 99% | 99% | 99% | 99% |
| Color Temperature | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Scan Rate | Jan-46 | Jan-46 | 46023 | 46023 | 46023 |
| Controller System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Controller Software | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Viewing Angle | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° |
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° |
| Humidity | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH |
| Life Span | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours |
| MTBF | 10000 Hours | 10000 Hours | 10000 Hours | AC110/220V , 50/60Hz | AC110/220V , 50/60Hz |
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs |
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | ||||
| Module | |||||
Pixel Pitch | P1.2mm | P1.5mm | P1.8mm | P2.5mm | P4mm |
| Material | Dia Cast Aluminum Serie | Dia Cast Aluminum Serie | Dia Cast Aluminum Serie | Dia Cast Aluminum Serie | Dia Cast Aluminum Serie |
| Led | SMD1010 | SMD1010 | SMD1010 | SMD2020 | SMD2020 |
| Pixel Density | 409,600dots/m2 | 409,600dots/m2 | 295664 dots/ m2 | 160000 dots/M² | 62500 dots/M² |
| Pixel Configuration | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module | Front service of module | Front service of module | Front service of module | Front service of module |
| Cabinet Dimension & Resolut ion | 640mm x 480mm 533 px x 400px | 640mm x 480mm 416 px x 312px | 640mm x 480mm 344 px x 258px | 640mm x 480mm 256 px x 192px | 640mm x 480mm 160 px x 120px |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Module Resolution | 266 dots x 133 dots | 208 dots x 104 dots | 172*86 dots | 160dots x 80 dots | 80dots x 40 dots |
| Viewing Distance | 1.2 Meter | 1.5 Meter | 1.8 Meter | 2.5 Meter | 4 Meter |
| Brightness | 800 cd/M² | 800 cd/M² | 900 cd/M² | 1000cd/M² | 1000cd/M² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 |
| Brightness uniformity | 99% | 99% | 99% | 99% | 99% |
| Color Temperature | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Scan Rate | Jan-46 | Jan-46 | 46023 | 46023 | 46023 |
| Controller System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Controller Software | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Viewing Angle | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° |
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° |
| Humidity | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH |
| Life Span | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours |
| MTBF | 10000 Hours | 10000 Hours | 10000 Hours | AC110/220V , 50/60Hz | AC110/220V , 50/60Hz |
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs |
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | ||||
| Module | |||||
Pixel Pitch | P1.2mm | P1.5mm | P1.8mm | P2.5mm | P4mm |
| Material | Aluminum Serie | Aluminum Serie | Aluminum Serie | Aluminum Serie | Aluminum Serie |
| Led | SMD1010 | SMD1010 | SMD1010 | SMD2020 | SMD2020 |
| Pixel Density | 409,600dots/m2 | 409,600dots/m2 | 295664 dots/ m2 | 160000 dots/M² | 62500 dots/M² |
| Pixel Configuration | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module | Front service of module | Front service of module | Front service of module | Front service of module |
| Cabinet Dimension & Resolut ion | 640mm x 480mm 533 px x 400px | 640mm x 480mm 416 px x 312px | 640mm x 480mm 344 px x 258px | 640mm x 480mm 256 px x 192px | 640mm x 480mm 160 px x 120px |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Module Resolution | 266 dots x 133 dots | 208 dots x 104 dots | 172*86 dots | 160dots x 80 dots | 80dots x 40 dots |
| Viewing Distance | 1.2 Meter | 1.5 Meter | 1.8 Meter | 2.5 Meter | 4 Meter |
| Brightness | 800 cd/M² | 800 cd/M² | 900 cd/M² | 1000cd/M² | 1000cd/M² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 |
| Brightness uniformity | 99% | 99% | 99% | 99% | 99% |
| Color Temperature | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Scan Rate | Jan-46 | Jan-46 | 46023 | 46023 | 46023 |
| Controller System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Controller Software | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Viewing Angle | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° |
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° |
| Humidity | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH |
| Life Span | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours |
| MTBF | 10000 Hours | 10000 Hours | 10000 Hours | AC110/220V , 50/60Hz | AC110/220V , 50/60Hz |
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs |
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | ||||
